Customized Factory On Grid 1MW Solar Energy System Project 1mw 500kw 800kw Solar System

Our Company

Hefei Pinergy Solar Technology Co.,Ltd was established in 2016, a professional and leading manufacturer of quality solar moduls. PNG SOLAR is located in Hefei City, Anhui Province, which is one of the main production bases of the photovoltaic industry in the world. JinKo, JA, GCL, Sungrow and BYD all sit here . PNG SOLAR has been certified by Alibaba several years ago. The business covers the R&D, production and sales of PV modules, residential, commercial and large scale solar plants. We supply turn-key service for domestic customers and all the materials for overseas markets.

3 production lines with annual capacity 1.2GW facilitate the lead producition time .
Sophisticated production experience and global sales network is attracting more and more customers from worldwide. In 2022, the company achieved sales vloume with USD 1.5 billion. And listed in the top 5 producer and exporter in our county.
For residential and commercial solar energy system, including on-grid, off-grid and hybrid solar energy system. PNG SOLAR cooperate with famous brands, like Huawei, Sungrow, Growatt, Deye and etc to supply quality materials . Quality is our soul.

We are Official agent of LONGi, JinKo, JA solar and etc.

Our principles: Integrity, Win-Win, Innovation !

Product Description





Products Details

Photovoltaic Module

* Tier 1 brand original TW solar /Astronergy/ Jinko/ JA / Longi and etc 590-740W solar panels



* 100% A+ grade with positive tolerance.



* IEC61215/IEC61730

/ISO9001/ISO14001/ISO45001

/MCS/FIDE/ RETIE certifications and etc.



* N type mono-facial or bifacial available.



* PID-Free, Anti-salt mist corrosion and Anti-Amonia .



* 12 years materials and processing warranty, 25years 80% power output warranty.



On-grid Inverter-

* Famous brand: Huawei/ Sungrow/Solis Growatt and etc

* Pure sine wave with 10 MPPT



* 98.8% (@480V) Max. Efficiency



* String-level Management



* MBUS Supported



* Smart I-V Curve Diagnosis Supported



* Support AFCI & Smart String Level Disconnector



* 5 years warranty

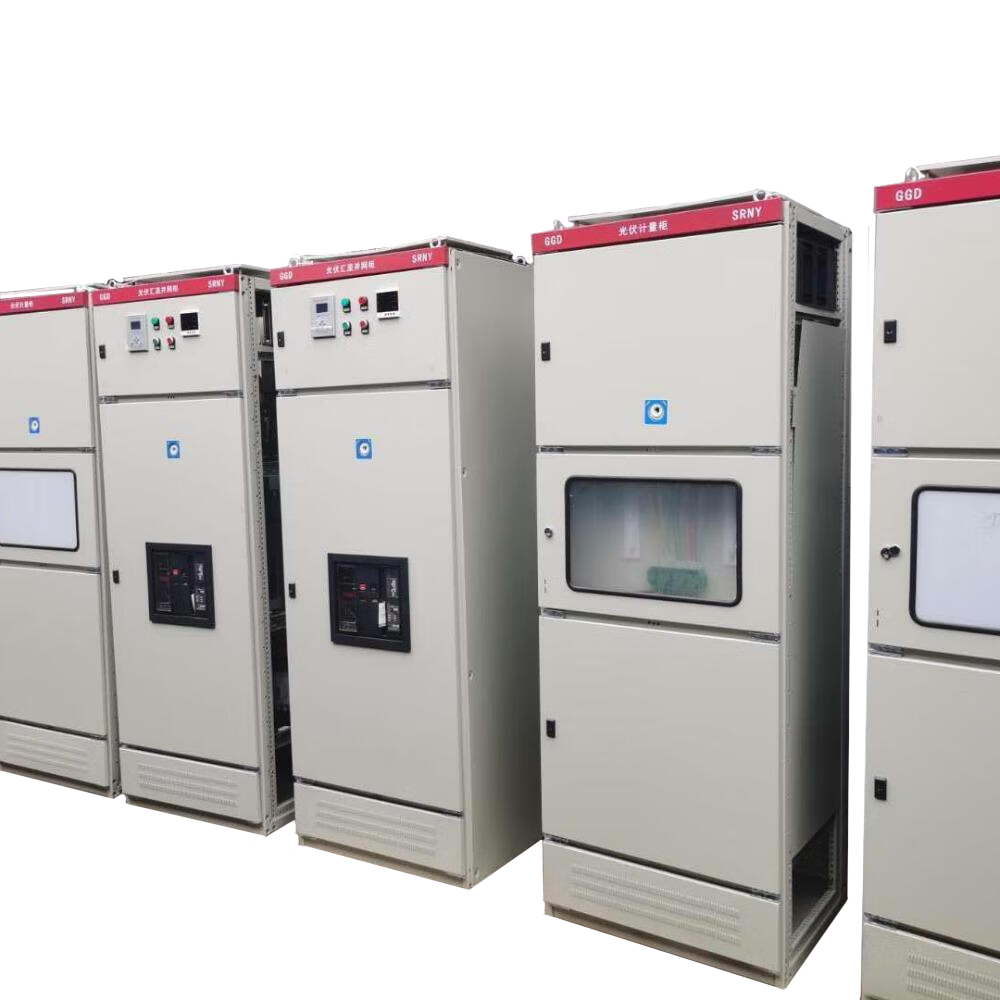

Grid-connected Cabinet

* Breaker / SPD/ Stainless steel (outdoor) or plastic ( indoor ) box

* Lightening protection, short-circuit protection, over-current protection

* Earth-leakage protection and anti-islanding protection

* Customized based on actual needs

* 5 years warranty

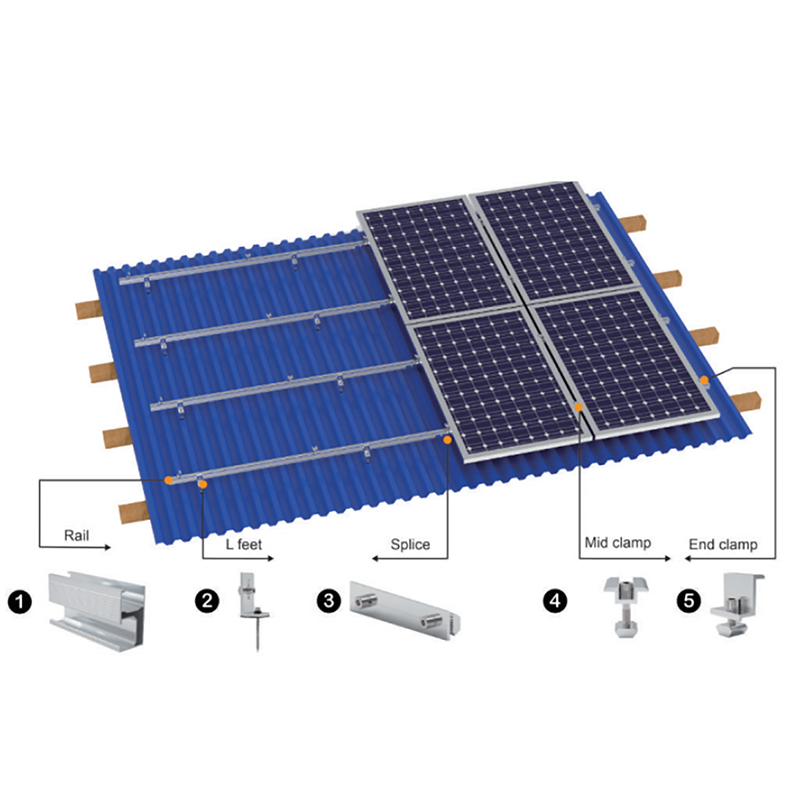

Solar Mounting System

* Pitched tiled/ flat roof mounting/ ground /carport mounted structure

* Mid-clmaping and end-clamping and all accessories.

* Hot-dip galvanized carbon steel or aluminum alloy

* Compatible with all sizes of solar modules

* 10 years warranty



Solar Cable (DC & AC )

* PV1-F 1*4mm2 & PV1-F1*6mm2, red & black

* Tinned copper wire

* AC 0.6/1.0KV DC 1.0KV

* 100m per roll or 200m per roll

* 3 years warranty.

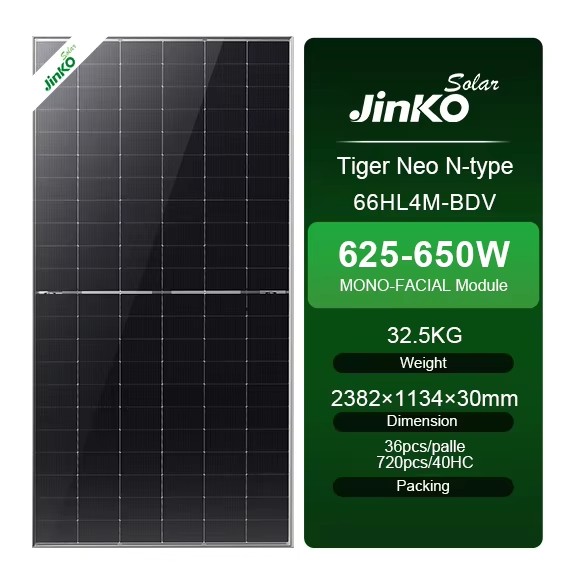

1. Specifications of solar panels-Jinko 625-650W N type Topcon



JKM625-650N-66HL4M-BDV
Specifications(STC)
Maxlmum Power-Pmax [Wp]	625	630	635	640	645	650
Maxlmum Power Voltage-Vmp [V	40.88	41.02	41.16	41.30	41.44	41.58
Maximum Power Current-Imp [A]	15.29	15.36	15.43	15.50	15.57	15.64
Open-circult Voltage-Voc [M	49.28	49.48	49.68	49.88	50.88	50.28
Short-cIrcult Current-Isc [A]	16.14	16.20	16.26	16.32	16.38	16.44
Module Efficlency STC [%]	23.14	23.32	23.51	23.69	23.88	24.06
Power Tolerance	0~+3%
Temperature Coefficlents of Pmax	-0.29 %/C
Temperature Coefficlents of Voc	-0.25%/℃
Temperature Coeffliclents of Isc	0.045%/℃
STC:Iradlance 1000W/m²,Cell Temperature 25℃,AM=1.5



STC: Standard Test Condition (STC)：Irradiance 1000W/m², Cell Temperature 25℃, AM1.5

Nominal Module Operating Temperature (NOCT)：Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s.

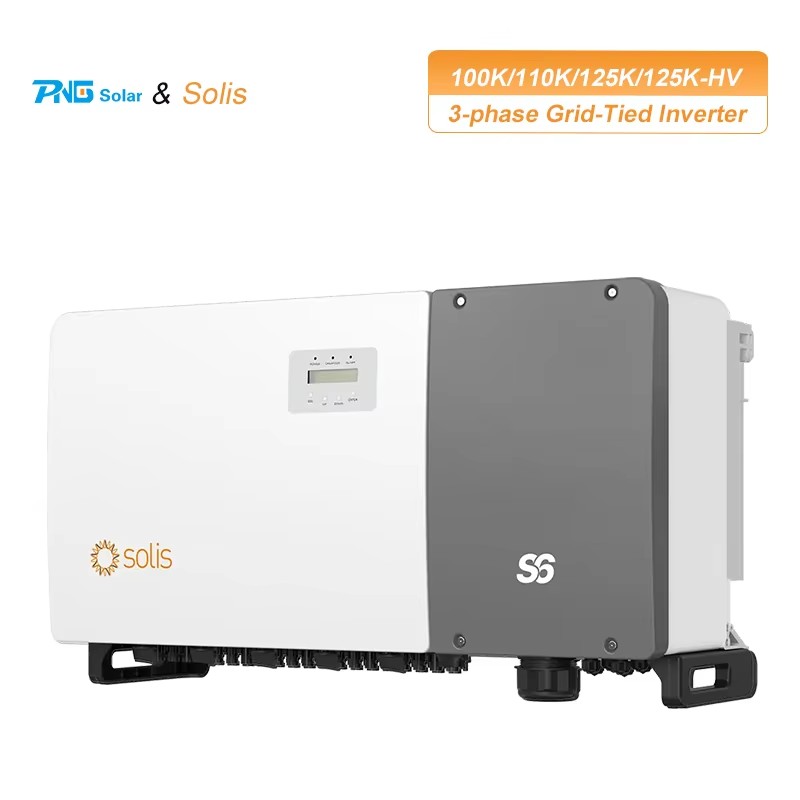

2. Specifications of Solis High-Voltage On-grid Inverter

- S6-GC(80-125)K

Input DC
Models	100K	110K	125K-HV
Max. input voltage	1100 V
Rated voltage	600 V		720V
Start-up voltage	195 V
MPPT voltage range	180- 1000 V
Max. input current	10*32 A
Max. short circuit current	10*40A
MPPT number/Max. input strings number	10/20

Output AC
Rated output power	100KW	110 kW	125 kW
Max. apparent output power	110 kVA	121kVA	137.5 kVA
Max. output power	110 KW	121KW	137.5 kW
Rated grid voltage	3/N/PE, 380 V / 400 V		3/PE, 480 V
Rated grid frequency	50 Hz / 60 Hz
Rated grid output current	152.0 A / 144.3 A	167.1 A / 158.8 A	150.4 A
Max. output current	167.1 A	183.8 A	165.4 A
Power factor	> 0.99 (0.8 leading - 0.8 lagging)
THDi	<3%



Package and Delivery

•


•


•





•


•


•



Project



Exhibition

•

  SNEC in 2024
•

  Dubai in 2025
•

  Canton Fair in 2026
